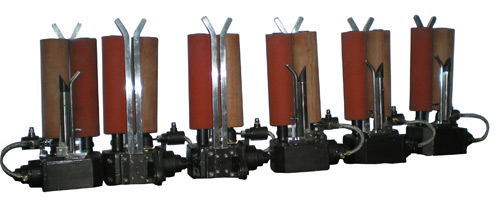

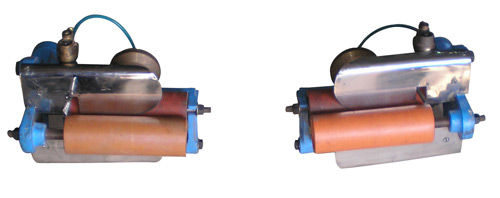

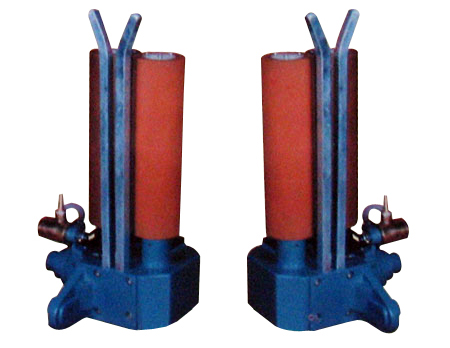

Pneumatic Cloth Guiders

Air operated Cloth Guiders are lowest maintenance free cloth guiders considering other type of cloth guiders like Mechanical, Electrical or Electronic. Pneumatic cloth guider requires only normal compressed air without any maintenance cost. Can be used on chemicals, wet conditions, no chance of electrical shock and only 2.5 kgs. compressor air pressure is required for operating the cloth guiders. This type of cloth is suitable for fabric width up to 24” to 120”.

Cloth Guiders always comes left & Right and it should mounted on Adjusting frame and the width increase or decrease one can adjust the cloth guiders manually by the help of hand wheels provided on both side the adjusting frame. Two mounting brackets are fitted on adjusting from to fix the cloth Guiders.

Cloth Guiders are used most of the Textile processing machines and Cloth type fabrics. Pneumatic cloth Guiders is having the lower running cost, which require normal compressor Air that is supplied through Air filter-Regulator-Lubricator. Light Duty models to Heavy models are available according to width of fabrics. Cloth Guiders are very import in cloth processing, printing, Dyeing, Bleaching, Printing inspection, batching, winding and rewinding. Foxbel type pneumatic Cloth Guiders are suitable for standard fabrics with up to 84”

Pneumatic Cloth Guiders Electrical Cloth Guiders. Electrical cloth Guiders are available for double folding machines also. The cheapest cloth Guiders is mechanical cloth guider, which is having many moving parts and require frequent service & replacement. Electrical cloth Guiders are working on 55/65 volts D.C supplied to its solenoid.

Pneumatic cloth Guiders is having the lower running cost, which require normal compressor Air that is supplied through Air filter-Regulator-Lubricator. Light Duty models to Heavy models are available according to width of fabrics. Cloth Guiders are very import in cloth processing, printing, Dyeing, Bleaching, Printing inspection, Batching, winding and rewinding.
