Static Eliminator

What it causes

Because of the static electric charges depending up on their intensity and surrounding atmosphere, one may see sparking or operator/ worker in surrounding area may get shock. Wherever the material is in the form of film or sheet, it may wrap around the guide rollers causing the breakdown. In printing machine & coating, laminating machine the static may result in fire on solvent based ink which can cause burning of machineries and even loss of human life.

In winding process, instead of getting clean winding, one may get crease in winding. Static electric charge also attracts dust particle which gives shabby appearance to the product. Higher the speed of the machine more is the generation of static electric charge resulting into intense problem and if it is not eliminated speed of the machine is to be reduced resulting into production loss. REMEDY TO THE ABOVE PROBLEMS To prevent the above one has to either neutralize the static charge or it should be conducted away to the ground.

HOW STATIC CHARGE ELIMINATOR WORKS Eliminator bars which are fixed as near as possible to the material process, on getting supply from the control unit, ionize the surrounding air and because of this, static electric charge is conducted away to the ground.

APPLICATIONS Film Plant Extruded Tubing Plant Tape Plant Cutting & Sealing Machine Bag Making-Printing Machine Textile Processing Machine Coating Machine Photographic Film Processing Offset Printing Machine And any other Web converting machine. Laminating Printing and other converting machines

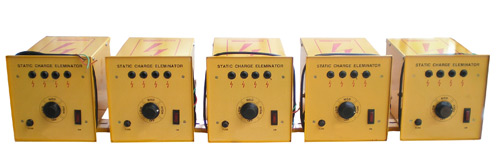

POWER UNIT

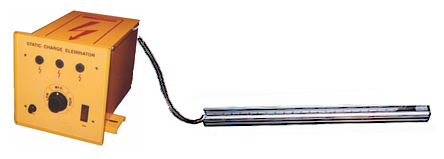

Power Control Unit - Can connect upto 3 Nos. Static bars of upto 120 inches working width in the following way:- Top of Film and bottom of film in parallel (Top and bottom side of film) for entry level and one No. bar for end side is necessary.

One Control Power unit have provision for connecting three static bar connections. One number extra spare card is provided inside, so that any one of the connection fails during simultaneous use of all the three, the spare card can be used. After disconnecting the power unit, manually change the static cord from the failed card connection to the spare card connection. To do this, simply open the top cover of the Control Power Unit and change the static cord connection from failed card to the spare card.

The power unit comes with one meter length 3 core power cord and static bars comes with two meter single core high power meters special cables as standard length. Electrode Slatic bars are cleaned by dry air or brushes frequently to avoid failure of unit. By brush or by blowing Air the dust deposited on the electrodes can be removed
